Gyro Tool For Surveying In Oil & Gas Drilling Wells

This article discusses gyro wellbore survey tool services available today in the oil and gas industry beginning with basic gyroscopic theory and leading up to Rate Gyro technology. There is no attempt to compare systems or provide an expert technical description of any company’s technology. The intent is rather to provide a basic understanding of gyro technology, its background, goals, and place among other surveying methods.

Application Of Gyro Tool In Directional Drilling Surveying

Since magnetic surveys which rely on compass readings are unreliable in the cased hole, or in the open hole where nearby wells are cased, an alternative method of assessing the direction of the well must be used. The inclination of the well can be assessed in the same way as in the magnetic tools. The Magnetic effects can be completely eliminated by using a gyroscopic compass.

Mechanism Of Gyro Tool

A Gyroscope is a wheel that spins around one axis but is also free to rotate about one or both of the other axes since it is mounted on gimbals. The inertia of the spinning wheel tends to keep its axis pointing in one direction. Therefore, gyroscopic instruments use this spinning gyro to determine the direction of the well.  There are four kinds of gyroscopic instruments: conventional gyro, rate or north-seeking, ring laser, and inertial grade.  The gyro is used where magnetic survey instruments cannot be used such as in cased holes and in areas where encountered.

In the oil & gas gyro single-shot survey tool, a gyroscope is rotated by an electric motor at approximately 40,000 rpm. On the surface, the gyro is lined up with a known direction (True North) and as the tool is run in hole the axis of the tool should continue to point in the direction of true North regardless of the forces which would tend to deflect the axis from a northerly direction.

A compass card is attached to and aligned with, the axis of the gyroscope and this acts as the reference direction from which all directional surveys are taken. Once the tool has landed in the required position in the drill collars the procedure is very similar to that for the magnetic single shot. Since the compass card is linked to the axis of the gyroscope it records a True North bearing which does not require correction for magnetic declination.

As we said above, a film-based conventional gyro is available as a single-shot instrument, but its use is limited to surveying and orienting deflection tools in oil and gas areas where magnetic interference is encountered (a cased hole and near other wellbores). Film-based gyros are seldom if ever used anymore.   Most of the time, gyros are run as multi-shots on electric wireline and the information is processed by a computer at the surface.  The wireline gyro can also be used to orient deflection tools. Gyros are also available in measurement while drilling tool.

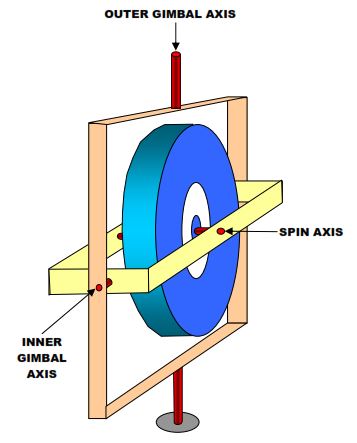

The frames supporting the gyroscope, and allowing this freedom of rotation are referred to as Gimbals. Because gyroscopes can be extremely complicated, we will look at simplified gyroscopes initially, in order to understand the forces working upon them. Figure 1 shows a simplified gyroscope within its housing in a typical well surveying
configuration.

gyro survey tool

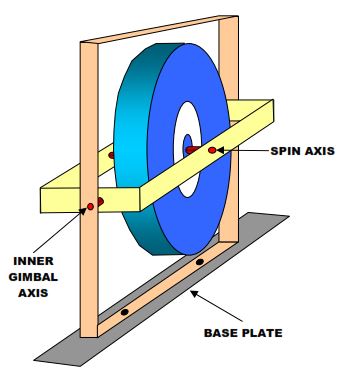

The gimbals isolate the gyro from the base so, as shown in Figure 2, the spinning mass can attempt to maintain its original orientation no matter how the base moves. The gyroscopes shown in Figure 4 is two-degree-of-freedom gyros.

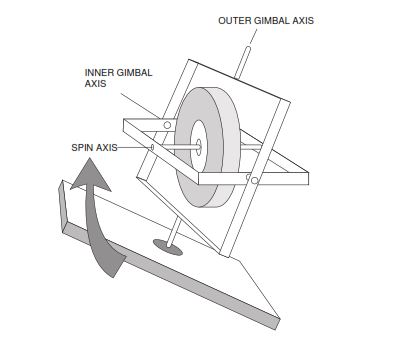

rotation around the outer gimbal axis
Figure 2 Gyro rotation around the outer gimbal axis

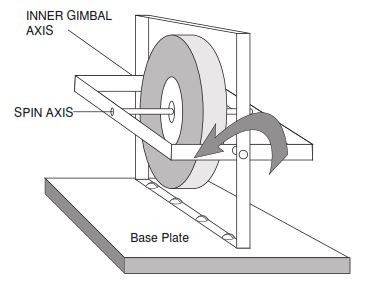

rotation around the inner gimbal axis
Figure 3 Gyro rotation around the inner gimbal axis in oil and gas survey

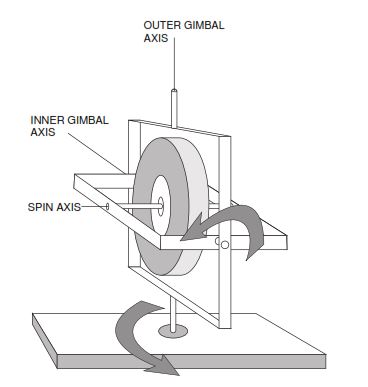

Two degrees of freedom
Figure 4 Two degrees of freedom gyro

As the probe moves downhole through different directions and inclinations, the gimballing allows the gyro to attempt to maintain a horizontal orientation in space.

In performing a wellbore survey, the gyro is pointed in a known direction prior to running in the well, so throughout the survey, the spin axis attempts to hold its surface orientation. Note that a compass card is aligned with the horizontal spin axis of the gyro. Survey data is collected downhole by affixing a plumb-bob assembly over the compass.

At each survey station, a picture is taken of the plumb-bob direction with respect to the compass card, resulting in readings of wellbore azimuth and inclination. The plumb-bob always, as a pendulum, points down toward the Earth’s center. When the tool is inclined off vertical, it points out the inclination of the well on the concentric rings and the azimuth by correlation with the known direction of the gyro spin axis established at the surface. (Note: There are also electronic, surface read-out free-gyro systems that eliminate the plumb-bob.)

The Main Components Of Oil & Gas Gyro Survey Tool

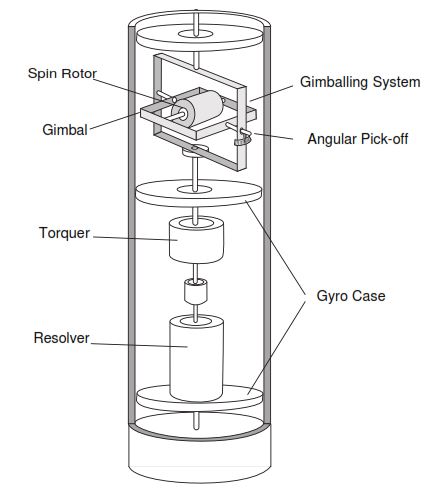

A gyroscope is a spinning wheel whose spin axis can move relative to some reference mount. For the sake of simplicity, the major components of the gyro are comprised of:

  • The Spin Motor, the main characteristic of which is “angular momentum”.
  • The Gyro Case which is the outer enclosure.
  • The Gimballing System which is the structure carrying the spin motor. The gimballing system isolates the spinning rotor from the gyro-case:
    • If the gyro-case turns around the outer gimbal axis (Figure 4-19).
    • If the gyro-case turns around the inner gimbal axis (Figure 4-20).
  • The Gimbal suspension, which includes:
    • The ball bearings (or gimbal bearings) between the gyro-case and the outer gimbal, and between the outer gimbal and the inner gimbal;
    • The rotor bearings holding the spinning rotor in the inner gimbal.
  • an Angular Pick-off which senses relative angular displacements between the gyro gimbal and the case.
  • a Torquer which enables compensation for certain types of errors and processing the gyro at desired rates.

Gyroscopes are usually classified according to various characteristics, namely:

Use

  • Instrument gyros such as artificial horizons and gyrocompass are used for measuring and indicating purposes.
  • Control gyros are used to generate signals.
  • Stabilizing gyros are used to generate torques for stabilizing purposes.

Construction and Function.

Two major types:

  • Single degree of freedom gyro which requires only one coordinate axis to locate the SPIN axis with reference to the instrument mount (Figure 5) . In a single degree of freedom gyro, the spin axis is stabilized against rotation around the gimbal axis but is disturbed by rotations about the quadrature axis.
Single degree of freedom gyro survey tool oil and gas
Figure 5 Single degree of freedom gyro
  • Two degree of freedom gyro in which the rotor spin axis can move with respect to the case around two axes in an uncontrolled manner (Figure 6).
Two degree of freedom gyro
Figure 6 Two degree of freedom gyro

Restraints On The Movement Of The Spin Axis

  • In a Single degree of freedom gyro, the spin axis may have:
    • An elastic restraint (rate gyro or gyrometer which measures the input angular velocity).
    • A viscous restraint (rate integrating gyro which measures the input angular displacement).
    • No restraint (integrating gyro).
  • In a Two degree of freedom gyro, the spin axis may be:
    • Completely free, except for unavoidable frictional restraints.
    • Supplied with torquers for correction or measurement purposes.

Gyro Survey Tool Types In Oil & Gas Wells

Conventional Gyro

The conventional gyro or free gyro has been around since the 1930s. It obtains the azimuth of the wellbore from a spinning gyro. It only determines the direction of the wellbore and does not determine the inclination.  The inclination angle is usually obtained with accelerometers. The film-based, single-shot gyro uses a pendulum suspended above a compass card (attached to the outer gimbal axis) to obtain inclination.  A conventional gyro has a spinning mass that usually turns at 20,000 to 40,000 rpm (some turn even faster). The gyro will stay in its fixed position as long as no external forces act on it and the mass is supported at its exact center of gravity. Unfortunately, it is not possible to support the mass at its exact center of gravity, and external forces do act on the gyro. Therefore, the gyro will drift with time. Figure 7 is a very simplified example of a conventional gyro.

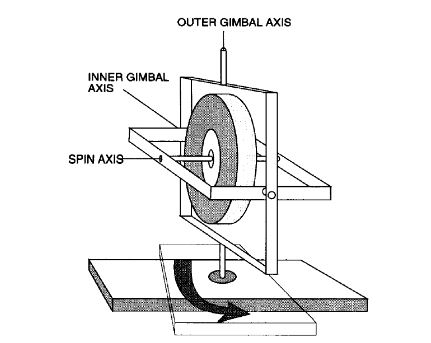

A Conventional Gyro with Two Degrees of freedom survey tool oil and gas
Figure 7 A Conventional Gyro with Two Degrees of Freedom

Theoretically, if a gyro starts spinning and is pointed in a specific direction, then it should not substantially change direction over time.  Therefore, it is run in the hole and even though the case turns around it, the gyro is free to move and it stays pointing in the same direction. Since the direction in which the gyro is pointing is known, the direction of the wellbore can be determined by the difference between the orientation of the gyro and the orientation of the case containing the gyro. The orientation of the spin axis must be known before the gyro is run in the hole.  This is called referencing the gyro. If the gyro is not referenced properly, the entire survey is off so the tool must be properly referenced before it is run in the hole for oil and gas wells.

Another disadvantage of a conventional gyro is that it will drift with time causing errors in the measured azimuth. The gyro will drift due to system shocks, bearing wear, and the earth’s rotation. The gyro can also drift due to imperfections in the gyro. The imperfections can develop during the manufacturing or machining of the gyro, as the exact center of the mass is not in the center of the spin axis.  The drift is less at the earth’s equator and higher at higher latitudes, near the poles. Generally, conventional gyros are not used at latitudes or inclinations above 70°. A typical drift rate for a conventional gyro is 0.5° per minute.  The apparent drift caused by the earth’s rotation is corrected by applying a special force to the inner gimbal ring. The applied force depends upon the latitude where the gyro will be used.

Because of these reasons, all conventional gyros will drift by certain amounts. Whenever a conventional gyro is run, the drift is monitored and the survey is adjusted for that drift.  If either the reference or the drift is not properly compensated, the gathered survey data will be incorrect.

Rate Integrating Or North-Seeking Gyro

In order to prevent the shortcomings of the conventional gyro,  a  rate or north-seeking gyro was developed. A rate gyro and north-seeking gyro are essentially the same things. It is a gyro with only one degree of freedom as illustrated in Figure 8.  The rate integrating gyro is used to determine true north.   The gyro resolves the earth’s spin vector into its horizontal and vertical components. The horizontal component always points to true north.  The need to reference the gyro is eliminated, which increases the accuracy.  The latitude of the wellbore must be known because the earth’s spin vector will be different as the latitude varies.

A Rate Gyro with One Degrees of Freedom
Figure 8 A Rate Gyro with One Degrees of Freedom

The rate gyro eliminates the drift associated with the earth’s spin.  The rate gyro measures the earth’s spin during setup and then automatically compensates for it, and hence is less prone to error than the conventional gyro.  The rate gyro does not have to be sighted in with a reference point like a conventional gyro eliminating one more possible source of error.   The rate gyro measures the forces acting on the gyro and the accelerometers measure the force of gravity. The combined readings of the accelerometers and the gyro allow calculation of the inclination and azimuth of the wellbore.

A rate gyro will measure the angular velocity through an angular displacement. The rate integrating gyro measures the integral of the angular velocity (angular displacement) through an output angular displacement.

Newer versions of the gyro can survey while moving but there are limitations. They do not have to remain stationary in order to get a survey.  Total survey time can be decreased making the tool more cost-effective.

Ring Laser Gyro

The ring laser gyro (RLG) uses a different type of gyro to determine the direction of the well. The sensor is comprised of three-ring laser gyros and three inertial grade accelerometers mounted to measure the X, Y, and Z-axis.  It is more accurate than a rate or north-seeking gyro. The survey tool does not have to be stopped to take a survey so surveys are quicker. However, the outside diameter of the ring laser gyro is 5 1/4 inches, which means this gyro can only run in a 7” and larger casing (check our casing design guide).  It can’t be run through a drill string, whereas, a rate or north-seeking gyro can be run through drill string or smaller diameter tubing strings.

In its simplest form, the ring laser gyro consists of a triangular block of glass drilled out for 3 helium-neon laser bores with mirrors at the 120-degree points – the corners3.  Counter-rotating laser beams – one clockwise and the other counter-clockwise coexist in this resonator. At some point, a photosensor monitors the beams where they intersect.   They will constructively or destructively interfere with one another depending on the precise phase of each beam.

If the RLG is stationary (not rotating) with respect to its central axis, the relative phase of the two beams is constant and the detector output is constant.  If the RLG is rotated about its central axis, the clockwise and counter-clockwise beams will experience opposing doppler shifts, one will increase in frequency and the other will decrease in frequency. The detector will sense the difference frequency from which precise angular position and velocity can be determined.  This is known as the Sagnac effect.

What is actually being measured is the integral of angular velocity or angle turned since the counting began. The angular velocity will be the derivative of the beat frequency. A dual (quadrature) detector can be used to derive the direction of rotation.

Inertial Grade Gyro

The most accurate survey instrument in oil and gas field is the inertial grade gyro often called the Ferranti tool. It is the full navigation system as adapted from aerospace technology.   Because of the highest accuracy of this gyro, most survey tools are compared with it to determine their respective accuracies.  The tool uses three rate gyros and three accelerometers mounted on a stabilized platform.

The system measures the change in direction of the platform and the distance it moves.  It not only measures the inclination and direction of the well but also determines the depth.  It does not use the wireline depth.  However, it has an even bigger dimension of 10⅝ inch OD.  As a result, it can only be run in casing sizes of 13 3/8” and larger.

Drift Values

Drift is the rotation of the outer gimbal because of the Earth’s rotation sensed and imperfections of the system. Drift is expressed in (degrees per hr) and can be range from 10 to 100 (°/hr).

Drift values may range as follows:

  • 0.5° to 1° per minute for cheap gyros
  • a few degrees per hour for directional gyros
  • 1/100th degree per hour for inertial gyros using gimbal flotation
  • 1/1000th degree per hour for some inertial gyros with spherical spinning rotors, supported by electrical fields

Nature and Source of Drift

Apparent drift is caused by the rotation of the earth. The torque which may cause drift may be separated into two main categories.

  • Error Torque such as gimbal error, for which adjustment or compensation may be applied.
  • Uncertainty Torque the random components of drift which bear no correlation with any inputs. The drift due to error torques is of three types:
    • Nonacceleration sensitive drift: Generally caused by elastic or magnetic torques.
    • Acceleration sensitive drift: Generally caused by mass unbalance.

Acceleration sensitive drift

Other sources of systematic drift rate errors may be temperature-sensitive torques due to differential expansion – torques due to the nonorthogonality of the principal axes and wheel speed change.

The random drift is due to small uncertainty torques such as caused by bearing noise, friction, temperature gradients, all of which are time variables. Random drift is generally determined by statistical analysis of a large number of drift tests.

Important Considerations To Be In Mind While Using Gyro Wireline Tool In OIl & Gas Wells

  • Gyroscopes are very sensitive to vibration so the gyro single shot must be run and retrieved on wireline.
  • The gyroscope may also drift away from its set direction while it is being run in the hole. When the instrument is recovered therefore, its alignment must be checked, and a correction applied to the readings obtained from the survey. Gyro single shots are often used to orient deflecting tools near casing.
  • The Gyro Multi-Shot is used in cased holes to obtain a series of surveys along the length of the wellbore. The magnetic multi-shot cannot be used because of the interefence to the earths magnetic field, caused by the magnetisation of the casing.
  • The directional surveyor must keep track of the depth at which the pre-set timer takes a picture. Only those shots taken at known depth when the pipe stationary will be recorded.
  • When the multi-shot is recovered, the film is developed and the survey results read. In the case of both single shot and multi-shot instruments adequate centralization must be provided so that the instrument is properly aligned with the wellbore.
