**Mud Engineers** & **drilling engineers** need to have quick drilling fluid calculations equations to help them while they are on the rig. In this article, we will have a simple

guide for the most used equations for drilling mud preparations, system, displacement, volumes, and more.

**Please Subscribe with your e-mail to get the latest drilling articles and job vacancies**

## Basic Drilling Fluid / Mud Engineering Calculations

- Middle East Drilling Rig Jobs Collections | January 2022
- Geosteering Definition, Applications In Oil & Gas
- Oil & Gas Companies & Recruitment Agencies List – PDF
- Annular Velocity Formula, Calculations and Function
- Non-Magnetic Drill Collars Functions & Selection

### Density and Specific Gravity Calculations For mud

The density of a material is defined as its mass per unit volume and is usually expressed in units of g/cm3, kg/m3 or, commonly in oilfield usage for liquids, lb/US gal. As an example, the density of (barite) is 4 g/cm3. Specific gravity (SG) is a unitless measure of relative density (the density of a material divided by the density of a reference substance).

The reference substance is almost always water which has a density very close to 1 g/cm^{3} and so the specific gravity of a material is very similar numerically to the density of that material but for accurate work, it is necessary to quote the temperatures at which measurements are made.

To determine the SG of a material, divide the density of the material by the density of water. Note that for accurate work, the density of water is dependent on temperature and the reference temperature should be quoted. Common reference temperatures are 39°F (4°C) and 68°F (20°C); the difference in the density of water at these two temperatures is approximately 0%.

Two figures are widely used in the drilling fluids industry for the density of water in oilfield units (lb/US gal). The figure of 45 assumes that the temperature of measurement is 39°F (4°C) and this is the figure adopted by the API. The figure of 3 assumes that the temperature of measurement is 68°F (20°C) and this is the figure used throughout this article. Using this figure, a 15.0 lb/gal mud has an SG of 1.8.

**Equation 1**

### Volume, Capacity, and Displacement calculations For Mud Engineer

Volume and capacity have the same units, but are not always equal. For example, a mud pit of 300 bbl capacity empty might only contain a volume of 200 bbl. **Displacement** is the volume of fluid displaced when the **drill string** is run into the wellbore full of fluid.

**Volume** Calculations For drilling fluid

Mud system volume = the total volume of what is in the active pits plus that volume in the hole

Total mud volume = pit volume + hole volume

Pump output volume = that volume adjusted for pump efficiency. Duplex **mud pumps** have an approximate efficiency of 85–95%, whereas triplex pumps have an approximate efficiency of 90–98%.

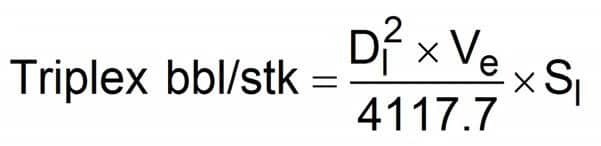

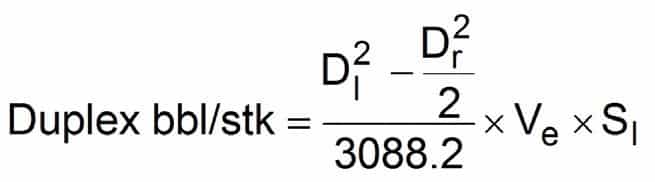

The following two drilling equations which is used by the mud engineer calculate pump output Q, at 100% volumetric efficiency. The constant, Ve, can be adjusted to calculate the bbl/stroke, gal/stroke, or liter/stroke.

**Equation 2**

**Equation 3**

**Where:**

D_{l} = Liner diameter, inches

D_{r} = Rod diameter, inches

V_{e} = Volumetric efficiency (decimal fraction)

Sl = Stroke length, inches

### Pit Capacity Determination For Mud Tanks

The most common container for the surface volumes is rectangular pits with vertical sides and flat bottoms. Other types of pits that may be encountered are rectangular pits with sloping sides and circular or elliptical cylindrical tanks. ( see also the **drilling fluid system** article)

All dimensions used by the drilling/mud engineers in the following calculations formulae are in feet.

#### Rectangular Mud Tanks with Flat Bottoms

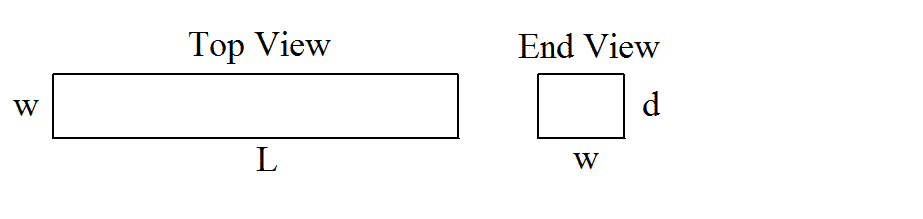

**Equation 4**

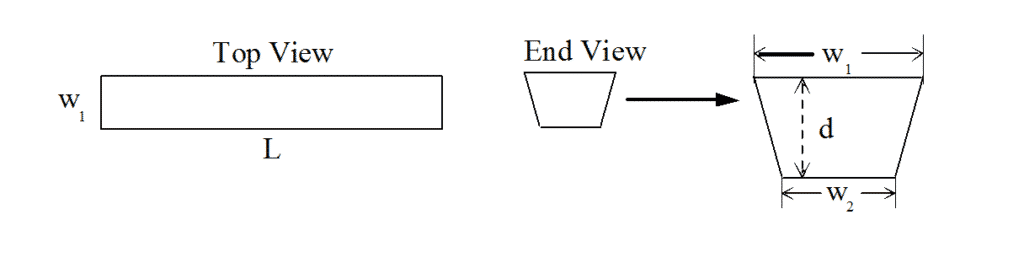

#### Rectangular Fluid Tanks with Sloping Sides

**Equation 5**

#### Circular Mud Cylindrical Tanks

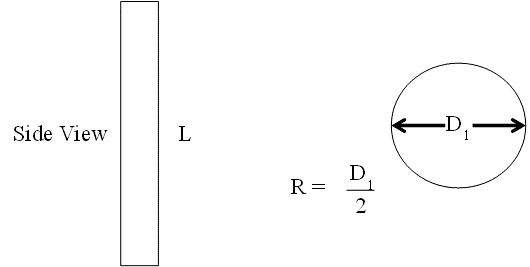

For mud engineer calculations, Upright Cylindrical Tanks

**Equation 6**

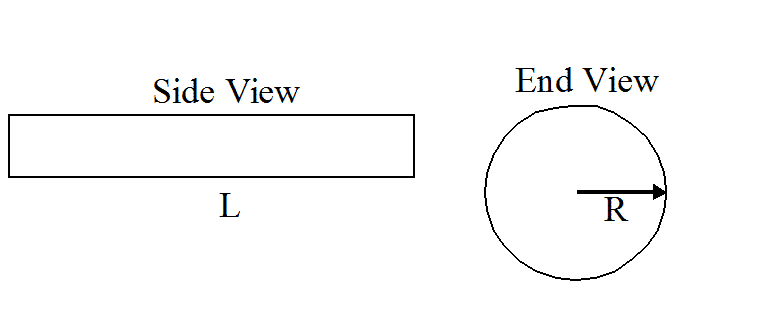

#### Horizontal Cylindrical Tanks

i. Determine the total tank capacity.

**Equation 7**

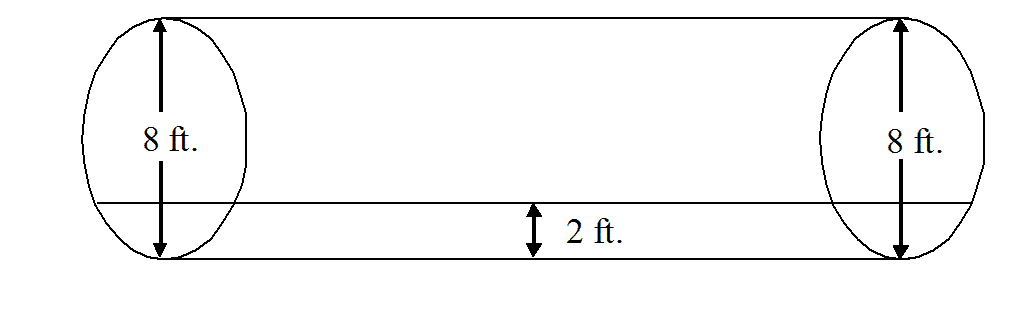

ii. Determine the percentage of tank diameter that is filled. If an 8 ft diameter tank is filled to a 2 ft level, the tank is filled to 25% of its diameter.

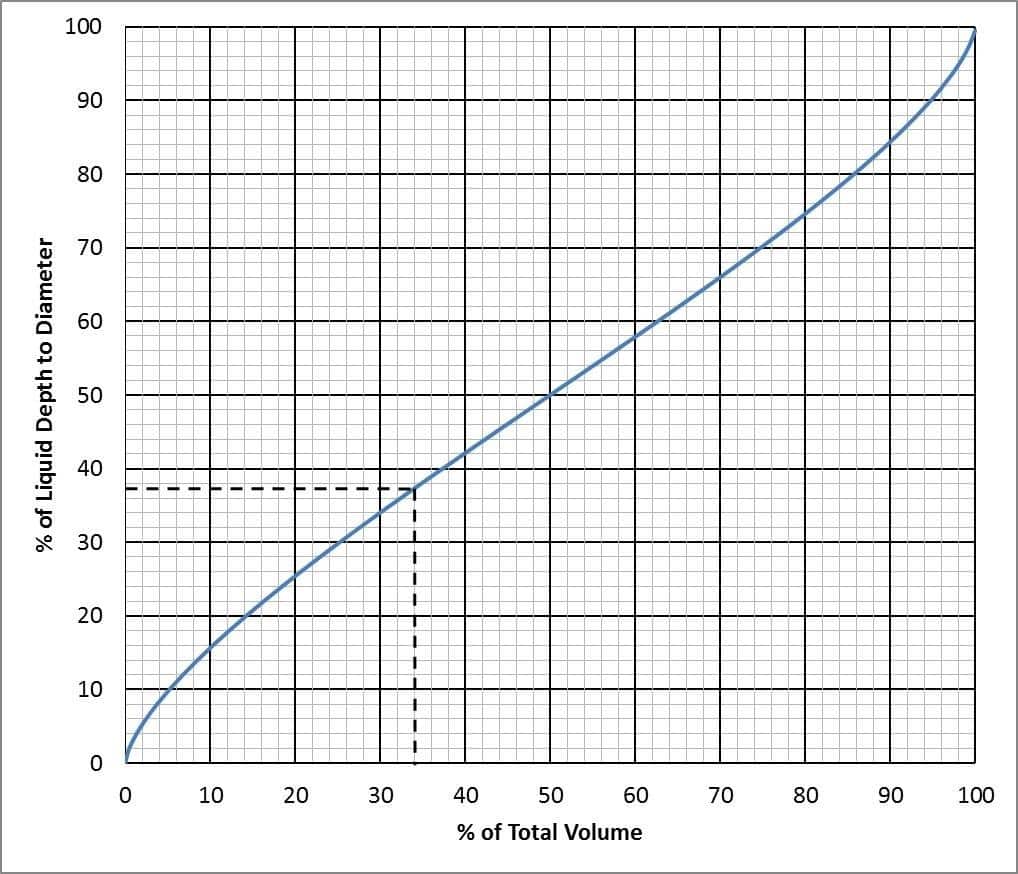

iii. Use the following graph to determine the tank volume based on percentage of tank diameter filled.

**Example**:

Diameter = 4 ft

Length = 20 ft

Fluid height = 1 ft

Total tank capacity = (34 × 22 × 20)/515 = 443 bbl

Percentage of liquid depth to diameter = (1 ÷ 4) × 100 = 37

From the graph, a percentage of 37 indicates 34% of capacity

Percentage of total capacity = 04×44 = 15 bbl fluid in tank

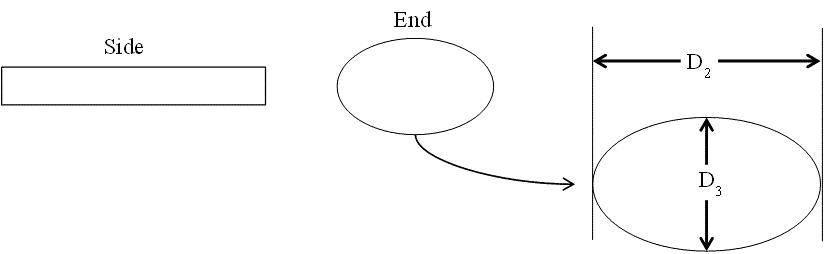

#### Elliptical Cylindrical Tanks

**Equation 8**

## Drilling Mud Capacity and Displacement Calculations(Drill string and Hole)

### Nomenclature

- Outside diameter, in. — OD
- Inside diameter, in. — ID
- Hole diameter, in. — D
_{h} - Annular outer pipe diameter, in. — D
- Annular inner pipe diameter, in. — d
- Closed-ended pipe — CE
- Open-ended pipe — OE

### Capacity

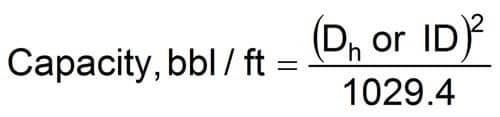

For drilling/mud Engineer to do calculations of the capacity of **drill pipe**, **drill collars**, **Heavy weight drill pipe**, Casing, other tubular, wellbore (cased or open) (**Download Now Capacity Calculator Sheet**): Diameter of wellbore = Dh or casing ID are used to solve the following equation.

**Equation 9**

### Displacement

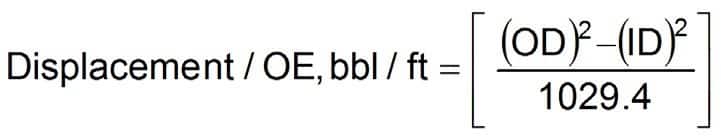

#### Open-ended pipe

As related to drill pipe, drill collars, and other tubulars is the volume of fluid that the pipe displaces by its wall thickness. Pipe OD and ID are used in the following equation:

**Equation 10**

#### Closed-ended pipe

As related to drill pipe, drill collars and other tubular is the volume of fluid that is displaced by its wall thickness plus the internal capacity of the pipe.

**Equation 11**

### Open Hole and Casing Volume (Without Pipe)

**Equation 12**

**or** **Equation 13**

**Note **Drilling / Mud Engineer shall use inside diameter (ID) for **casing** and bit diameter for open hole calculations. Do not allow for open-hole washout unless values are known from fluid (mud) logging data or caliper logs. Annular or **casing capacity tables** can be used in lieu of the formulae.

### Pipe Capacity

**Equation 14**

or **Equation 15**

**Where:**

ID = Inside diameter of drillpipe. (in.)

Use equivalent IDs from pipe tables in this section.

L = Length (ft)

### Pipe Displacement Obtained from Pipe Tables

Because of the varying thicknesses of the various types of tool joints, read displacements from pipe tables rather than calculate them, unless tool joint specifications are available.

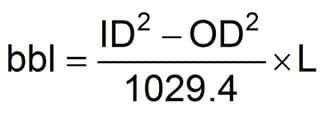

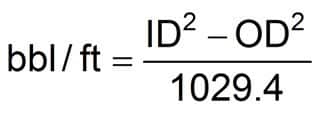

#### Annular Volume

**Equation 16**

or

**Equation 17**

**Where:**

- ID = Inside diameter of casing or bit diameter (in.)
- OD = Outside diameter of drillpipe or drill collars (in.)
- L = Annular section length (ft)

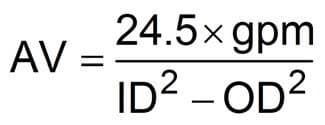

#### Annular Velocity

**Equation 18**

**Where**:

- AV = Annular velocity, (ft/min)
- gpm = gal/min
- ID = Inside diameter of the hole or casing (in.)
- OD = Outside diameter of the pipe or collars (in.)

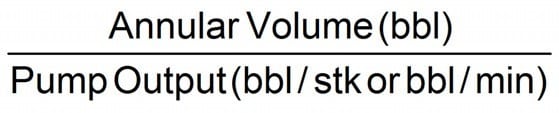

#### Bottoms Up (Strokes or Time)

**Equation 19**

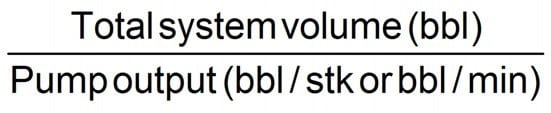

#### Total Circulating Displacement (Strokes or Time)

**Equation 20**

Where:

- Total system volume = Surface volume + Pipe capacity + Annular volume

#### Hole Volume Displacement (Strokes or Time)

**Equation 21**

Where:

- Hole volume = Annular volume + Drillpipe capacity
- Hole volume = Open hole capacity – Drillstring displacement

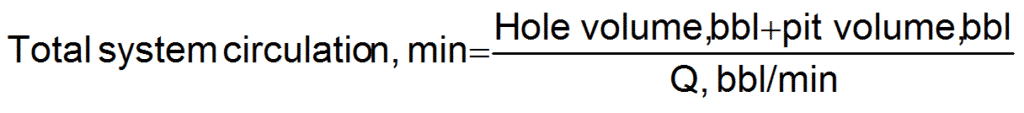

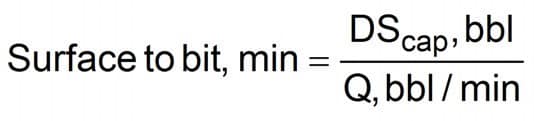

#### Drilling Mud Circulating Time Calculations

##### Nomenclature

- Annulus capacity — Ann
_{cap} - Pump output — Q
- Drill string capacity — DS
_{cap}

**Equation 22**

**Equation 23**

**Equation 24**

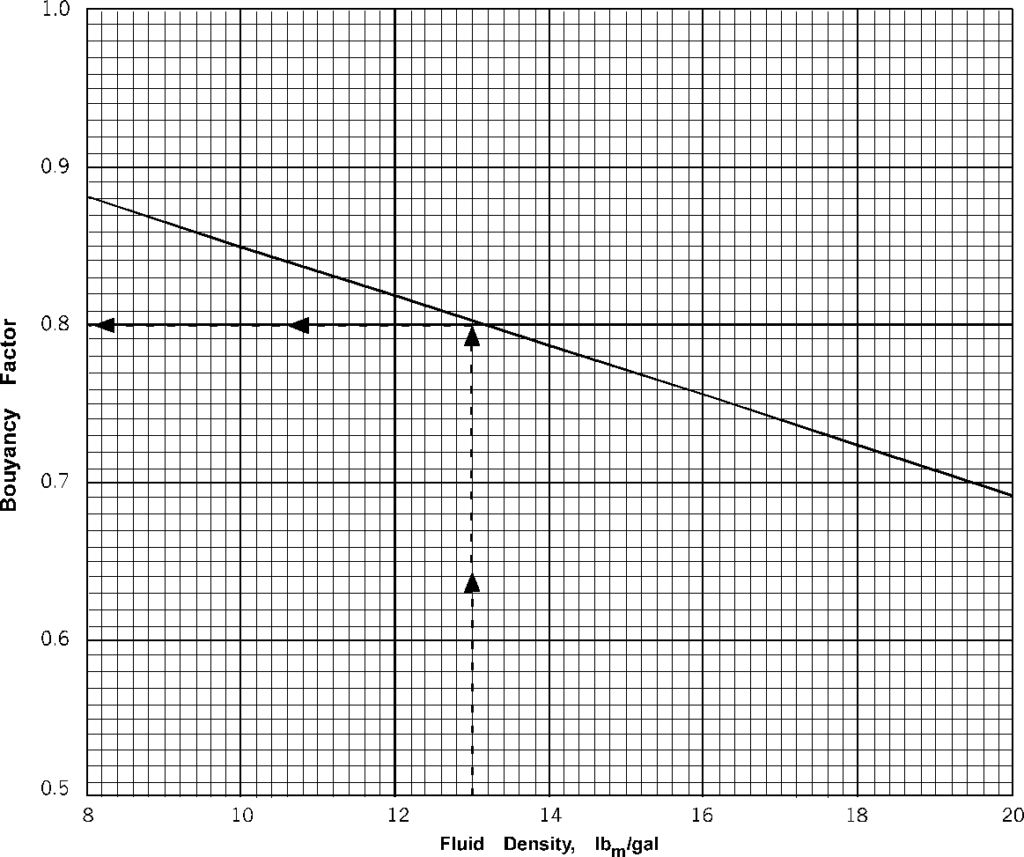

### Density and Volume Calculations

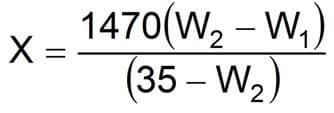

#### Density Increase Using (Barite)

**Equation 25**

**Where**:

- X = Sacks of BAR/100 bbl fluid (100 lbm sacks)
- W1 = Initial fluid density (lbm/gal)
- W2 = Desired fluid density (lbm/gal)

If using **Barite **4, replace 1470 with 1,435 and 35 with 34 in the above equation.

#### Volume Increase Using (Barite)

**Equation 26**

**Where**:

- V = Volume increase/100 bbl fluid
- W1 = Initial fluid density (lbm/gal)
- W2 = Desired fluid density (lbm/gal)

If using Barite 4, replace 35 with 34 in the above equation.

#### Density Increase Using (Hematite)

**Equation 27**

**Where**:

- X = Sacks of
**DENSIMIX**/100 bbl fluid (100 lbm sacks) - W1 = Initial fluid density (lbm/gal)
- W2 = Desired fluid density (lbm/gal)

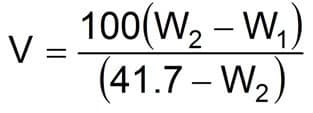

#### Volume Increase Using (Hematite)

**Equation 28**

**Where:**

- V = Volume increase/100 bbl of fluid
- W1 = Initial fluid density (lbm/gal)
- W2 = Desired fluid density (lbm/gal)

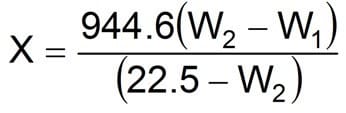

#### Density Increase Using (CaCO3)

**Equation 29**

**Where**:

- X = Sacks of MIL-CARB/100 bbl fluid (100 lbm sacks)
- W1 = Initial fluid density (lbm/gal)
- W2 = Desired fluid density (lbm/gal)

#### Volume Increase Using (CaCO3)

**Equation 30**

**Where**:

- V = Volume increase/100 bbl of fluid
- W1 = Initial fluid density (lbm/gal)
- W2 = Desired fluid density (lbm/gal)

#### Weight Reduction with Freshwater

**Equation 31**

**Where**:

- X= bbl of water required
- Vi= Initial volume (bbl)
- W1 = Initial fluid density (lbm/gal)
- W2 = Desired fluid density (lbm/gal)

#### Weight Reduction with Oil

**Equation 32**

The specific gravity of oil = 0.84

**Where**:

- X = bbl of oil required
- Vi = Initial volume (bbl)
- W1 = Initial fluid density (lbm/gal)
- W2 = Desired fluid density (lbm/gal)

#### Mixing Liquids of Different Densities

**Equation 33**

**Equation 34**

**Where**:

- VA = Volume of first fluid (bbl)
- VB = Volume of second fluid (bbl)
- VT = Final volume (bbl)
- WA = Density of first fluid (lbm/gal)
- WB = Density of second fluid (lbm/gal)
- WT = Density of combined fluids or final weight (lbm/gal)

**Note **Drilling / Mud Engineer shall know that this drilling fluid calculations formula assumes fluids are totally miscible, no precipitation reactions occur, and fluids are of comparable salinity. This equation does not apply to the mixing of high-density brine fluids.

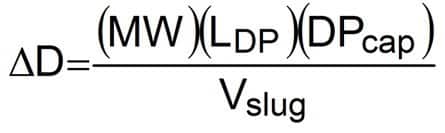

#### Fluid Density Increase for Slugging Pipe

**Equation 35**

**Where**:

- ∆D = Fluid density increase (lb/gal)
- MW = Current fluid density (lb/gal)
- DP
_{cap}= Drillpipe capacity (bbl/ft) - V
_{slug}= Slug volume, usually 30 to 50 bbl - L
_{DP}= Desired length of dry pipe, usually 500 to 800 ft

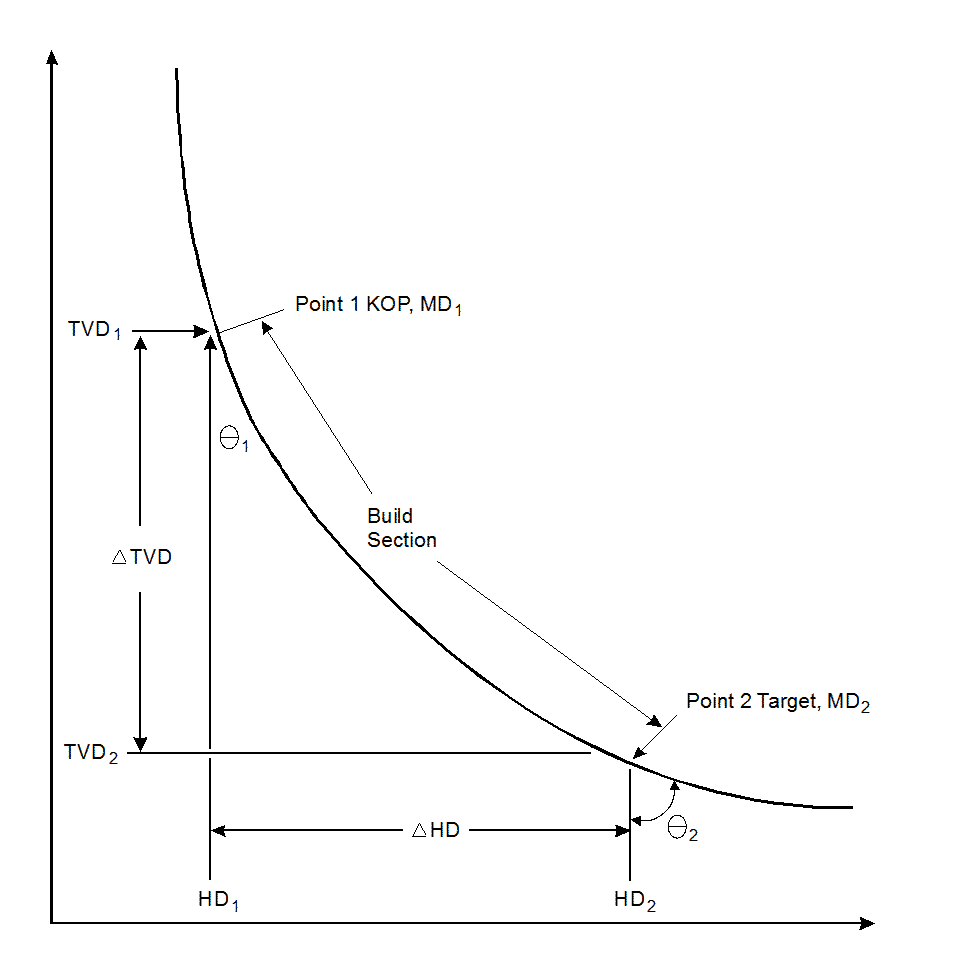

### Vertical Depth vs. Deviated Hole Calculations

#### True vertical depth (average angle method)

**Equation 36**

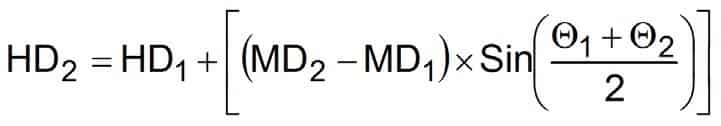

#### Horizontal displacement (average angle method)

**Equation 37**

#### Kick-off point determination

**Equation 38**

**Where **(all depths in feet):

- TVD1 = True vertical depth at point 1
- TVD2 = True vertical depth at point 2
- MD1 = Measured depth at point 1
- MD2 = Measured depth at point 2
- HD1 = Horizontal displacement at point 1
- HD2 = Horizontal displacement at point 2
- θ1 = Deviation at point 1
- θ2 = Deviation at point 2
- T = Target depth
- BUR = Build-up rate (°/100 ft)

**Note **This method of drilling fluid calculations assumes that the course length between point 1 and point 2 is a straight line. The direction and inclination are also assumed to be the averages of the values measured at each point. The method will be less accurate when applied over long course lengths, but it is a good approximation for most drilling / mud engineering calculations.

Drilling mud / fluid Calculations (mud engineer calculations) for deviated wells must use measured depth when calculating volumes and vertical depth when calculating equivalent fluid weights.
