Kill Mud Weight Calculations In Oil & Gas

Kill Mud is the drilling fluid with a specific weight that will restore the primary well control and will secure the well on its own without the need of closing the BOP stack or any secondary well control.

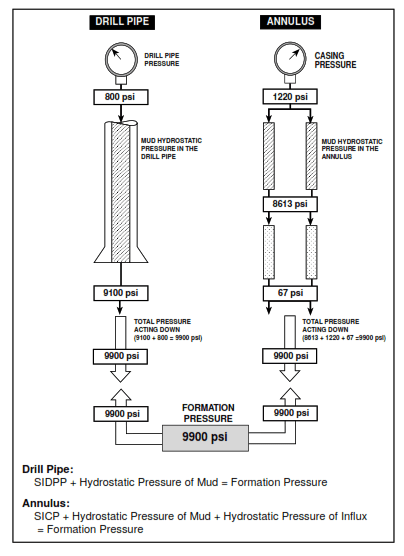

Balance of Pressures

Balance of Pressures

Once the well is shut-in providing nothing has broken down, the pressures in the well will be in balance. What is lacking in hydrostatic head of fluid in the well is now being made up by surface applied pressure on the annulus and on the drill pipe.

Providing the drilling bit is on bottom and the drill string is full with a known mud density this allows us to determine what the formation pressure is and hence what kill mud weight is required to achieve balance.

On the drill pipe side of the U-tube.

formation pressure for kill mud calculation

On the casing side of the U-tube

Formation Pressure formula

The mixture of mud and formation fluid in the annulus makes it impossible to determine formation pressure using the casing information. The drill pipe, however, is full of clean mud of known weight and can be used as a barometer of what is happening downhole.

pore pressure equation

Kill Mud Weight Calculations

We require the mud to produce a hydrostatic pressure equal to the formation pressure over a length equal to the true vertical depth of the hole. This can be expressed as a gradient, and converted to any desired mud weight unit; in this case ppg.

The kill mud weight required could also be described as the original mud weight increased by an amount which will provide a hydrostatic pressure equal to the amount of the drill pipe shut-in pressure over the vertical length of the hole.

Kill Mud Weight Calculation Equation

Once the formation pressure is known, the mud weight required to balance, or kill, it can be calculated, since:-

Kill Mud Weight PPG
