Cementing Calculations- 7 Steps & Spreadsheets

Learning Objectives

Upon completion of oil well casing cementing & slurry calculations article, you should be familiar with:

  • How to calculate the amount of cement slurry for a Primary casing cementing job. (check also Cementing Design Guidelines)
  • How to calculate the mixing water required for the casing cementing job.
  • How to calculate the pressure required to displace & land the top plug in the primary casing cementing job
  • Download Excel Sheet to help you in casing cementing calculations steps

Important Links To Read To Understand How To Perform Oil Well Casing Cementing Calculations

Pipe Capacity Calculations
Annular Capacity Formula & Calculations
Slurry and Weight Calculations

Step By Step Perform Casing Cementing Calculations & Procedures

7 critical oil well cement calculations that need to be made with every surface casing

  1. Cement volume – The volume of cement needed to fill the required footage of the annulus in addition to the shoe track capacity.
  2. Sacks of Cement – Converting the calculated volume of cement into sacks.
  3. Mixing water required for given slurries.
  4. Displacement fluid which is mandatory to the top plug from surface to the top of the shoe track.
  5. Critical Circulating Pressure – Pressure needed to lift (pump) the casing out of the hole
  6. Pressure to land the plug – Differential pressure required to pump the plug (check casing running & cementing accessories) to the top of the shoe track.
  7. Resulting Force – The calculated hook load at the top of the casing once the plug has landed.

Required Well Parameters For Casing Cementing Calculations

  1. Pipe Size
  2. Well Fluid
  3. Hole Size
  4. Pipe Depth
  5. Shoe Track Length
  6. Required Cement fill-up
  7. Excess volume required (percent)

Oil Well Casing Cementing Calculations Guidelines

VariableUnitPlaces Decimal
Densitylb/gal1
Yieldft^3/sk2
Water Requirementgal/sk2
Length (Depth)feet1
Diameterinches3
Volumesacks2
Weightpounds2
Pressurepsi3
Forcepounds / force2
Capacities / Volume & Heightsft^3/ft or bbl/ft4
Pressure per Lengthpsi / ft4
Pressure per Volumelbs / ft^32

Oil Well Casing Cementing Calculations Conversion Factors

FromBarreltoCubic FeetDivide by0.1781
FromCubic FeettoBarrelMultiply by0.1781
FromLb/galtoPsi/ftMultiply by0.05195

In this part you will be shown the steps for oil well casing cement slurry volume calculation.

Given Information for Oil Well Primary Casing Cementing Calculations

Well Parameters

  1. Pipe Size: 9 5/8 in 36 lb/ft
  2. Well Fluid: 8.7 lb/gal
  3. Hole Size : 12.25 in
  4. Pipe Depth: 300 ft
  5. Shoe Track Length: 40 ft
  6. Required Cement Fill-Up To surface
  7. Excess Volume Required (percent): 100%

1 Calculations for Volume of Cement Slurry

To calculate the amount (sacks) of cement required for this surface casing cementing job, you need to know the kind of cement, its desnsity and its yield.

For this example we will utilize Class C Cement. The blend has a weight of 14.8 lb/gal, a Yield of 1.32 ft3/sk, and a Water Requirement of 6.3 gal/sk.

Now assume that you have circulated through the surface casing down to a depth of 300 ft and that you have a well-conditioned hole. It is mandatory to calculate the volume of slurry required for the job. This is a combination of the slurry required to fill annular space and to fill the shoe joint.

A) To resolve how much slurry is needed to fill the annulus, the ft^3 /ft for the annulus is multiplied by the annulus length.

  • First, refer to the “Volume and Height Between DrillPipe, Tubing, Casing, and Hole” section within the Red handbook. Look on the table for 9 5/8 in. The ft^3 /ft for this annulus is 0.3132.
  • It is already given that the length of the annulus is 300 ft. Multiplying this by the ft^3 /ft value found in Step A results in the volume required to fill the annular space

Volume of slurry In Annulus = Annulus length x Capacity (ft^3/ft)

300 ft × 0.3132 ft ^3/ft = 93.96 ft^3

B) Now, the volume of slurry in the shoe joint (or track) needs to be calculated in the last step, to resolve how much slurry is in the shoe joint, the capacity factor of the joint is multiplied by its length.

  1. To get this capacity factor for our cementing calculations, refer to the  “Capacity” section of the Cementing Table (See also Figure 1) You need to know the OD (9 5/8 in.) and the weight (36 lb/ft) of your casing. The capacity factor is 0.4340 ft /ft.
  2. The length of the shoe track was provided as 40 ft.

 Volume of slurry in the shoe joint =  The capacity factor of the shoe joint x Its length

0.4340 ft^3 /ft × 40 ft = 17.36 ft^3

C) Calculate the total volume of cement

Total volume of cement = Slurry volume in annulus + Slurry volume in shoe joint

93.96 ft^3 + 17.36 ft^3 = 111.32 ft^3

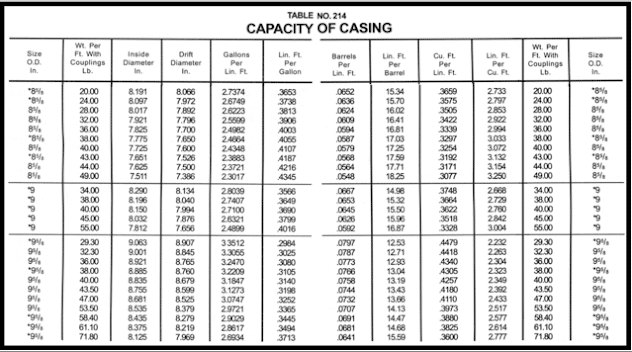

casing capacity tables red book cement calculations
Fig.1
volume and height between casing and hole cement calculations
Fig.2

2 Sacks of Cement.

Now that you know the cubic feet required (Step 3), you can utilize the yield to work out the number of sacks required :

Number of sacks required = Total volume of cement ÷ Cement yield

111.32 ft^3 ÷ 1.32 ft^3 /sk = 84.33 sk

3 Volume of Required Mixing Water For Casing Cementing Job

After you calculate the number of sacks of cement required , it will be needed to calculate the volume of water required on location to prepare the cementing slurry. This water shall always be fresh water (unless slurry is designed for salt or seawater).

The Redbook (Download now Halliburton RedBook PDF Cementing Tables)shows that you will need 6.3 gallons of water per sack of cement . This is multiplied by the number of sacks in order to obtain the total number of gallons of mixing water required . This unit of measurement needs to be converted to barrels since tanks on trucks are marked off in barrels.

Total required water volume = Number of sacks x required water per sack gal/sk

1.  First, calculate how much mixing water you need in gallons:

6.3 gal/sk × 84.33 sk = 531.28 gallons

2.  As there are 42 gal in a barrel, convert to barrels:

531.28 gal × 42 gal/bbl = 12.65 barrels

Accordingly, it will take this quantity of water to mix such cement. You will need more water on rig, considering the water utilized for flushing, spacer, etc.

4  Calculations for Displacement

The first step in the cementing process is to run a bottom plug to clean the casing from and mud buildup on the casing wall. The cement pumped after the bottom plug will break the plug’s diaphragm. Then it will flow through the center of the plug, out the bottom of the shoe, and then up the annulus. If a bottom plug is not run, the top plug will wipe down the walls and mud will collect in the shoe joint between the top plug and the cement slurry.

When all of the cement has been mixed, the top plug will be pumped down to a depth of 260 ft. The number of barrels required to do this is the same as the capacity of the casing to the float collar

Displacement Volume =casing length which the cement will be pumped through x its capacity

0.0773 bbl/ft × 260 ft = 20.1 bbl

5  Calculations for Pressure Required to Lift Pipe

When pipe is run into a hole, this movement result in a ram effect. This ram effect will increase as the running speed increases and the casing OD increases. In some cases, the ram effect may cause breakage in the weak zones. Sand may slough off and bridge the annulus. If the casing is stuck in the hole ( Check Our Guide For Stuck Pipe Prevention & Solution), you cannot pull it out without parting it.

These calculations are performed as a precaution. They are performed before mixing any cement. Just in case the annulus has bridged, you need to know how much pressure would be required to lift the pipe. This pressure could possibly lift the pipe out of the hole, so you need to chain the pipe down during the operations.

1.  First, the area of the casing must be found.

a)  In the “Calculations and Formulae” section of the Red Book (see also Figure 1, look up the formula for the area of a circle. Figure 3

Area = 0.7854 × D^2

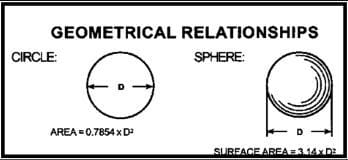

area calculations for cement casing calculations
Fig.3

b)  Plug the diameter (9 5/8 in.) into the formula for area of a circle (area of the casing):

9.625 × 9.625 in. × 0.7854 = 72.76 in^2

2. The next step is to calculate the weight of the pipe when it is hanging in fluid (the downward force of the pipe in the wellbore.)

a)  First, look up the buoyancy factor for the wellbore fluid you are working with. Keep in your consideration that this buoyancy factor relates to the fact that open-ended pipe weighs less in a fluid than it does in air. The weight of this fluid is 8.7 lb/gal. Referring to the “Displacement” section of the Red Book (see also Figure 4), you will see that the buoyancy factor is 0.8671 for a fluid of that weight.

b)  You also need to know how much your casing weights in air. From the casing stamp, you can find that this casing weigh 36 lb/ft.

c)  Since it is not known at what depth the annulus might become bridged, utilize the overall length of your casing (300 ft) for these calculations.

Weight of the pipe hanging in fluid = Buoyancy factor x Weight per foot of casing x Length of the casing

0.8671 BF × 36 lb/ft × 300 ft = 9364.68 lb (downward direction)

Now you have enough information to calculate the amount of pressure to apply to the casing at the surface, pumping downward through the casing below the casing shoe, to start the lift (or to balance the pipe). The larger the diameter of the pipe the less pressure is required to lift the string. This is why you need to chain down large diameter casing during the pumping operation (chain it to the substructure or a leg of the drilling rig derrick, but not to the rotary table).

3. Calculate the required pressure to start the lift

When applying pressure to start circulation, caution should be taken to prevent the pipe from blowing out of the hole and causing damage. The casing should be chained down and all personnel except the operator, should be cleared off the rig floor.

The pressure required to start the lift = The downward force of the pipe ÷ The area of the pipe

 9364.68 lb ÷ 72.76 in. = 128.706 psi

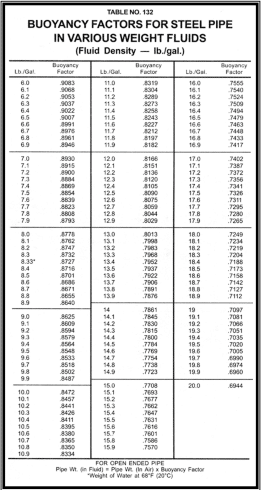

byouancy factors for steel pipe in various weight fluids
Fig.4

6 Calculating Pressure to Land The Plug During Casing Cementing Job

Calculations for pressure to land the plug shall be made on each job. You need to get the pressure required to put the cement in place.

  • Any pressure buildup in excess of this pressure might be an indication for channeling or bridging in the annulus.
  • A loss of pressure could mean a loss of cement into the formation.

Due to the fluids having different weights, a differential pressure results. You must convert the lb/gal of the cement and displacement fluid to psi/ft in order to perform the calculation. We will do this with the usage if the constant 0.05195. Using this constant will take any fluid weight and convert it to psi/ft using multiplication.

To reduce errors, here is the most accurate way to perform this calculation: Working form the bottom of the casing up to the surface, calculate the hydrostatic pressure outside, then calculate the hydrostatic pressure inside.

Reminder: All the work will be from the bottom up, for the entire casing string.

Hydrostatic Outside

Cement

300 ft × 14.8 lb/gal x 0.05195 = 230.658 psi

Total Hydrostatic Outside for 300 ft = 230.658 psi

Hydrostatic Inside

Cement

40 ft × 14.8 lb/gal x 0.05195 = 30.754 psi

Well Fluid

260 ft  × 8.9 lb/gal x 0.05195 = 120.212 psi

Total Hydrostatic Inside For 300 ft = 150.966 psi

Differential Pressure

Differential Pressure = 230.658 psi – 150.966 psi  =  79.692 psi

Always re-total the depth. If you don’t end up with the same depth then something is wrong.

NOTE: You must slow the pump rate down to a half barrel per minute to read this on a chart or gauge because high rates create friction pressure (which can give you a false pressure reading).

When the plug has been pumped to its landing position and 79.692 psi is readable on the gauge, this job has been finished successfully. Take in your consideration that you will not have the capability to correctly read the pressure to land a plug on all jobs. Having cement losses into the formation or producing channels in the cement will change the pressure reading.

Release the pressure when the plug lands; this will prevent a micro-annulus. Remember that it will be required to increase pressure higher than what is required to land the plug in order to pressure test the plug’s seal. Depending on the test results, a pressure test for the casing after the plug lands will be a good idea.

Calculations for Hydrostatic Pressure at a Certain Depth

You need to be able to calculate the hydrostatic pressure at any depth. For the purpose of this problem, you will resolve the hydrostatic psi at 260 ft. Will this formation support the amount of pressure exerted by the column of cement down the annulus to the given point?

In this example problem, you will have only one hydrostatic pressure to work with since you have cement from the top to the bottom of the well. That pressure is 0.7689 psi/ft, and can be resolved as follows:

14.8 lb/gal x 0.05195 = 0.7689 psi/ft

NOTE: You can also searach for hydrostatic pressures for specific fluid weights in the bones section, Page 18-21 of your Redbook.

The hydrostatic pressure in a casing job is the pressure in the annular space. The plug will shut in the pressure in the casing when it lands on a float collar. If you do not land the plug or run a float collar or back pressure valve, but only stop the plug in the casing, then you will shut in the cementing head and the pressure to land the plug will be on the casing until the cement has set.

Hydrostatic pressure at a certain depth =  depth x the fluid gradient (psi/ft) of the fluid in the annulus

 – in this case, cement slurry:

260 ft × 0.7689 psi/ft = 199.914 psi

7 Calculations for Resulting Force After Finishing Oil Well Casing Cementing Job

Precautions shall be considered before pumping the plug down when you are working on a surface casing. You need to discover if the casing will remain still, or if the plug landing pressure will pump the casing out of the hole – if so, you will need to chain the pipe down (in addition to chaining the head to the elevators).

As you did in Calculation 5, you will calculate the difference between the upward force on the pipe and the downward force on the pipe.

1. Calculate The Upward Force

You have calculated the area of the surface casing (Step 1b – Pressure to Lift the Pipe Calculations) to be 72.76 in^2 . In addition, you know the pressure to land the plug is 79.692 psi (Pressure to Land the Plug Calculation – Differential Pressure). Multiplying the two values will give you the amount of upward force in pounds.

Upward force = Area x P required to land the plug

72.76 in^2 × 79.692 psi = 5798.39 lb

2. Calculate The Downward Force

Get the buoyancy factor from redbook tables for the 8.7 lb/gal displacement fluid (Step 2a – Pressure to Lift the Pipe Calculations). Going to the Bone section again, search for the buoyancy factor for the cement utilized (Fig.4). The density of cement is 14.8 lb/gal. To find the buoyancy factor for this density, you must search for 14.8 lb/gal.

Now the length and weight of the piece of pipe in question are required . Cement is inside the pipe in the shoe joint (40 ft) and displacement fluid is inside the pipe above the float collar (260 ft). The weight of the pipe is 36 lb/gal.

Using the formula for downward force, resolve the downward force contributed by the displacement fluid:

Pounds of downward force = Length of pipe × Buoyancy factor for the displacement fluid inside the pipe × Pipe weight per foot

260 ft × 0.8671 BF × 36 lb/ft = 8116.06 lb

3. Determine the downward force contributed by the cement:

Pounds of downward force = Length of pipe × Buoyancy factor for the displacement fluid inside the pipe × Pipe weight per foot

40 ft × 0.7689 BF × 36 lb/ft = 1107.22 lb

4. Obtain The Total Downward Force

Adding these two downward forces together (Step 2 and 3) will give you the total downward force:

8116.06 lb (downward) + 1107.22 lb = 9223.28 lb ( Dowmward)

5. Calculate The Resulting Force After The Casing Cementing Job

Subtract the upward force (Step 1) from the downward force (Step 4) to get the resulting force:

9223.28 lb – 5798.39 lb    = 3424.89 lb

Although this is considered a downward force, it will be mandatory to chain down the casing as a precautionary measure.

Oil Well Casing Cementing Calculations Spreadsheets

You can choose from the below spreadsheets

Download Oilfield Casing Cementing Calculations Spreadsheet # 1

download casing cementing calculations spreedsheet

Download Oilfield Casing Cementing Calculations Spreadsheet # 2

download casing cementing calculations spreedsheet

Download Oilfield Casing Cementing Calculations Spreadsheet # 3

download casing cementing calculations spreedsheet
